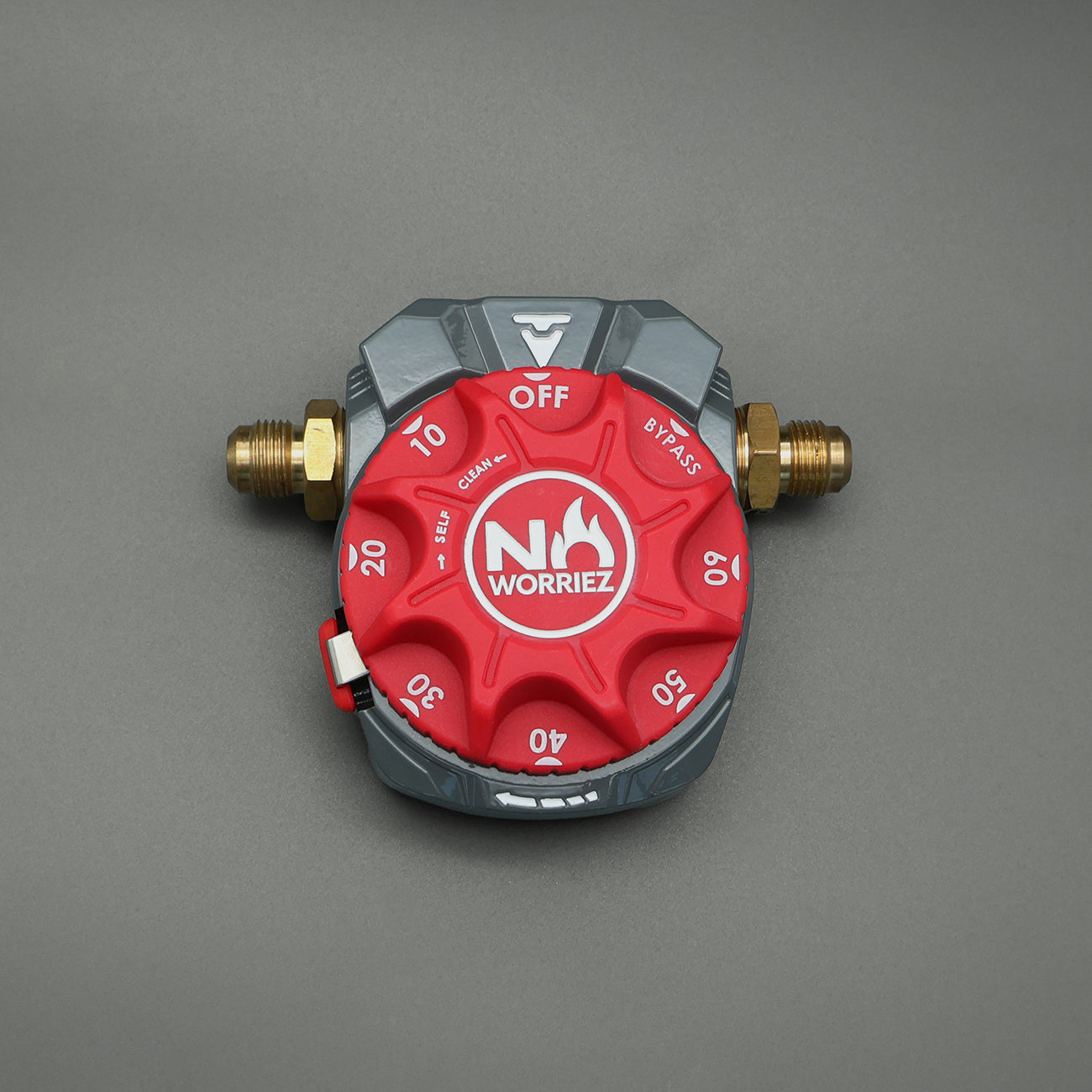

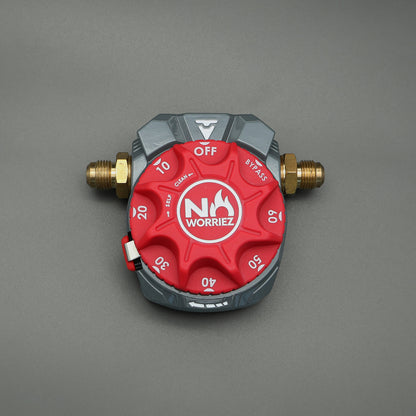

Gas Timer w/Bypass Duo Flex 3/8" Flared Kit

Gas Timer w/Bypass Duo Flex 3/8" Flared Kit

SKU:BG-GTS-05

Regular price $134.00
Regular price $144.00 Sale price $134.00
Sale Sold out

Featuring a 'Bypass' function, it provides flexible usage, users can switch between auto-off timer mode and continuous gas supply mode.

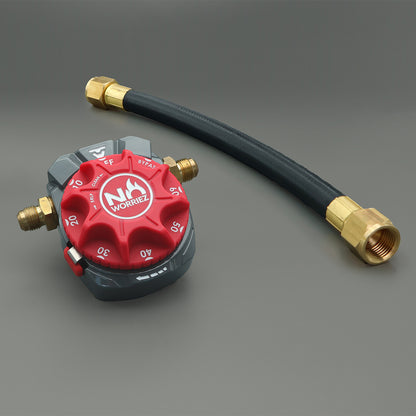

This model is a flexible kit; both the inlet and outlet parts are served with pre-assembled male connectors, and a flexible propane hose ready for connections. The gas timer’s Inlet & Outlet are 3/8-inch Flare Male Connectors.

  • Free Shipping on orders over 6 units
  • Extra 15% discount on 6+ purchases
View full details

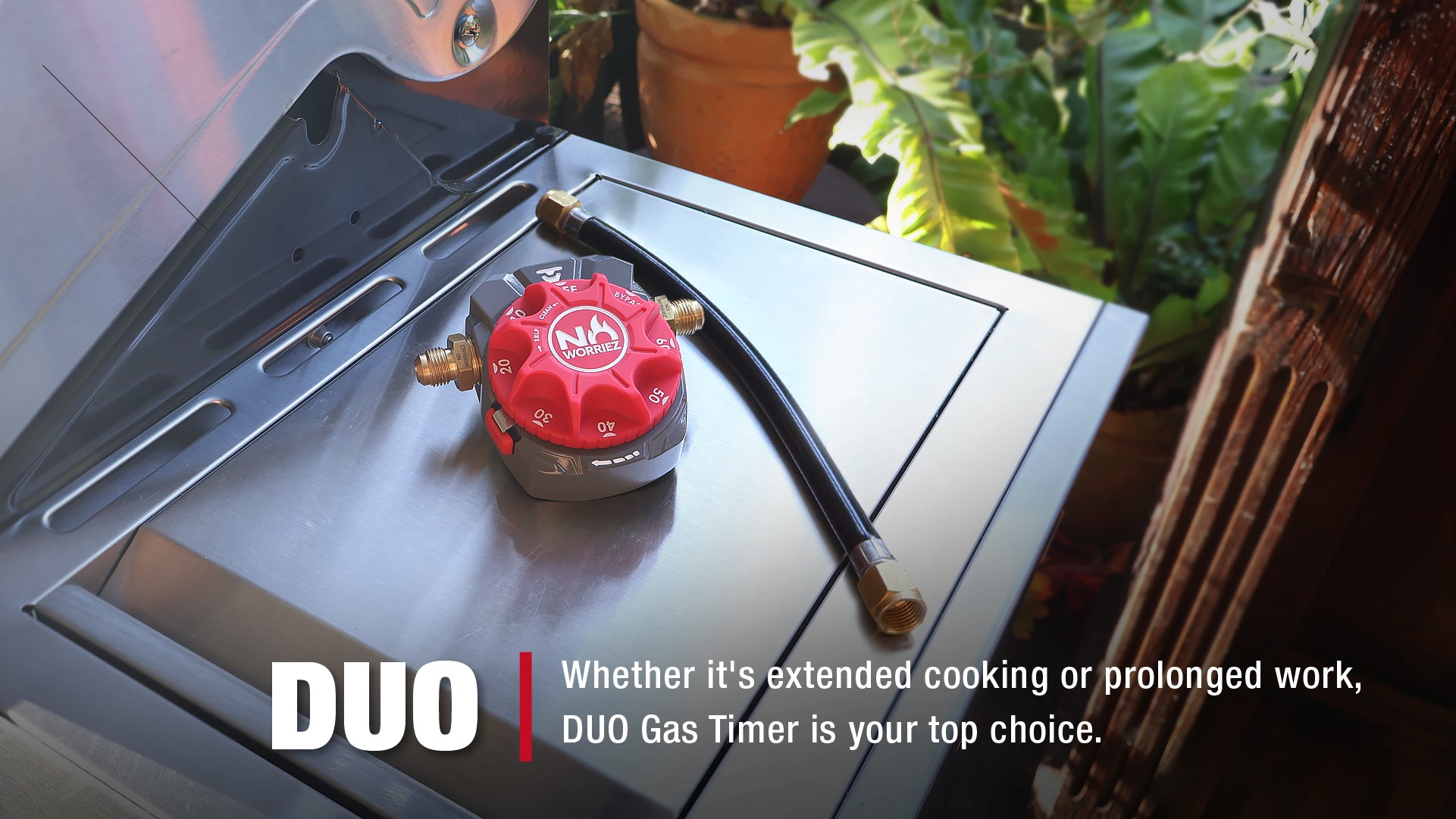

Duo Series: Bypass Gas Timer

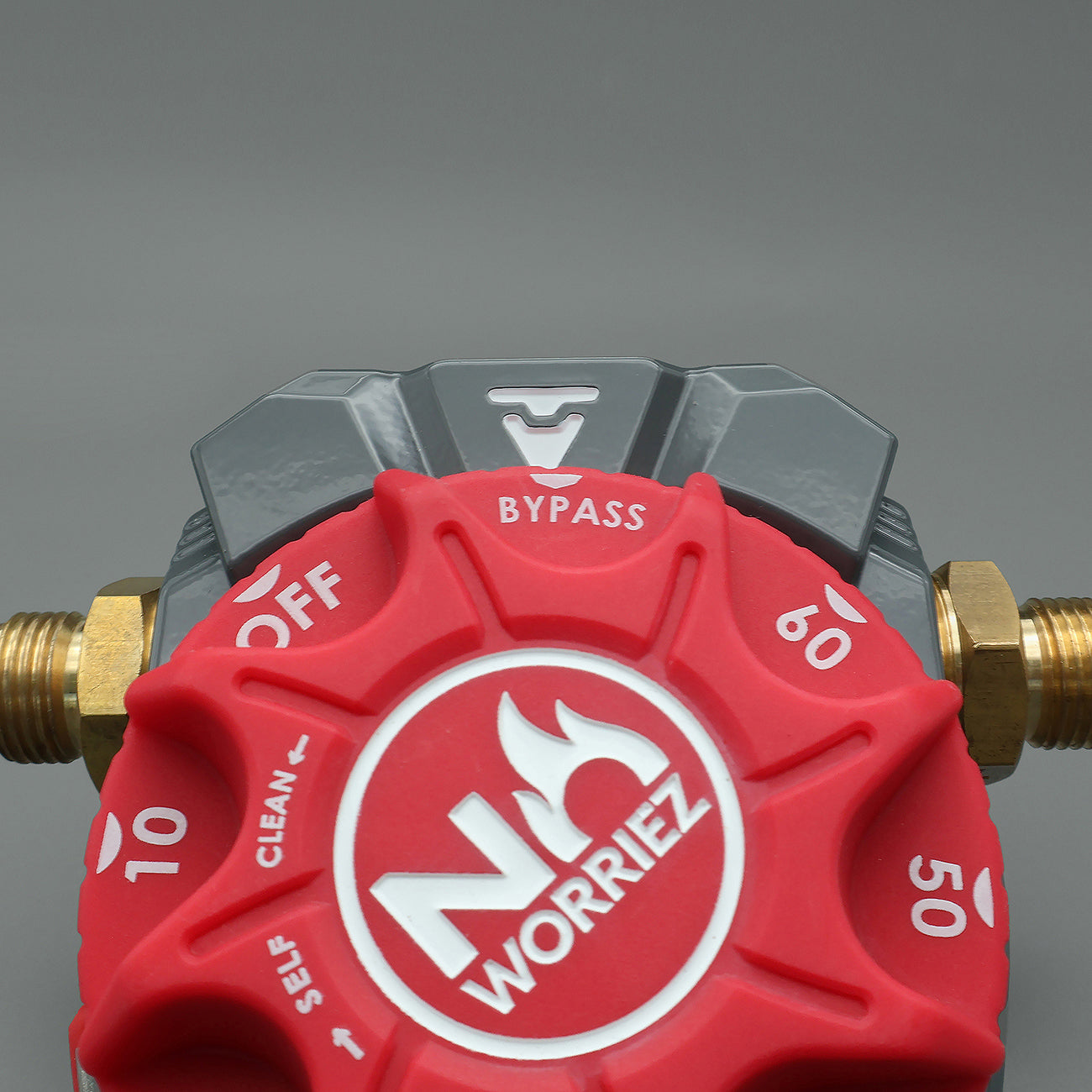

Whenever you plan to grill for a long time, no need to remove the timer valve anymore! Just push the side button then dial the timer to the 'BYPASS' position, the gas timer now serves as a continuous gas supply mode.

gas timer felxible hose

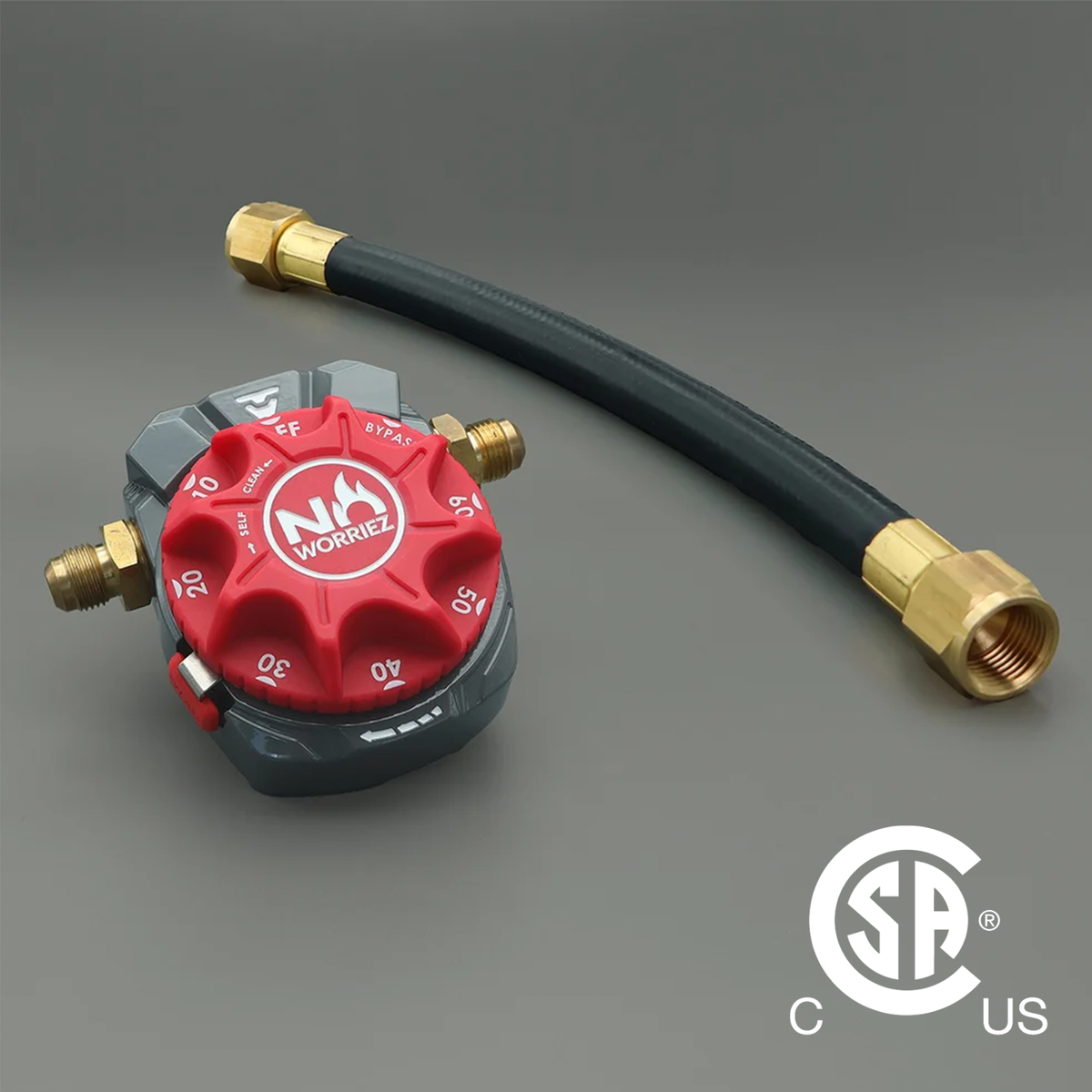

Flex. Kit for Easy Installation

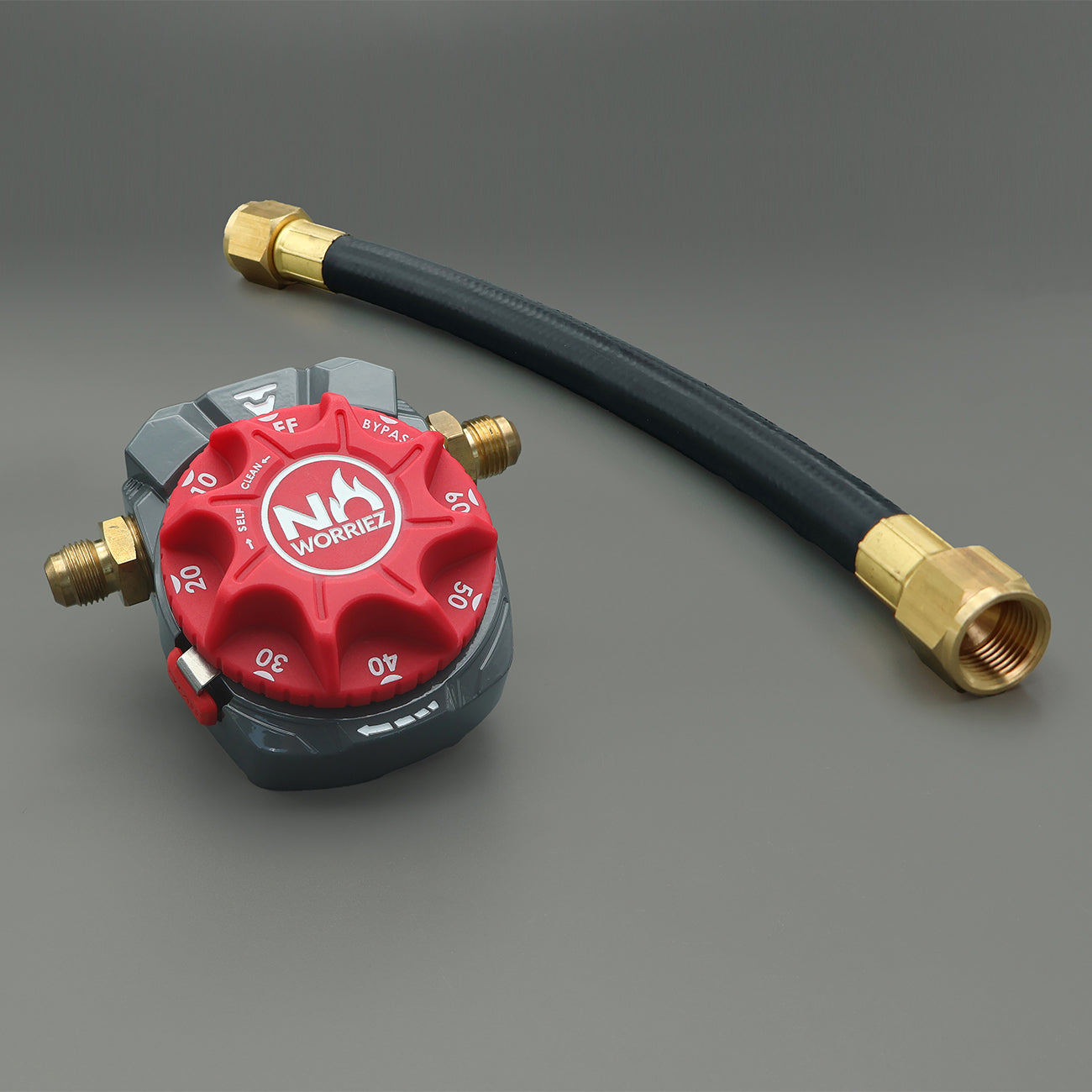

For model BG-GTS-05, the gas timer with bypass is provided with 3/8-inch NPT male connectors on both the inlet and outlet parts, and a flexible propane hose ready for use.

This kit allows users the flexibility to choose the ideal length of the propane hose on demand, to build up the connections between the propane tank and the gas grill with ease. You don’t have to figure out all the complicated specs of accessories; No Worriez takes care of it!

Gas timer bypass

Bypass for Flexible Usage

This smart gas timer is crafted with an additional function called Bypass, it’s a continuous gas supply mode that supports long-time usage. You can easily switch between the regular auto-off timer mode and the Bypass mode, based on the scenario in which you have a demand.

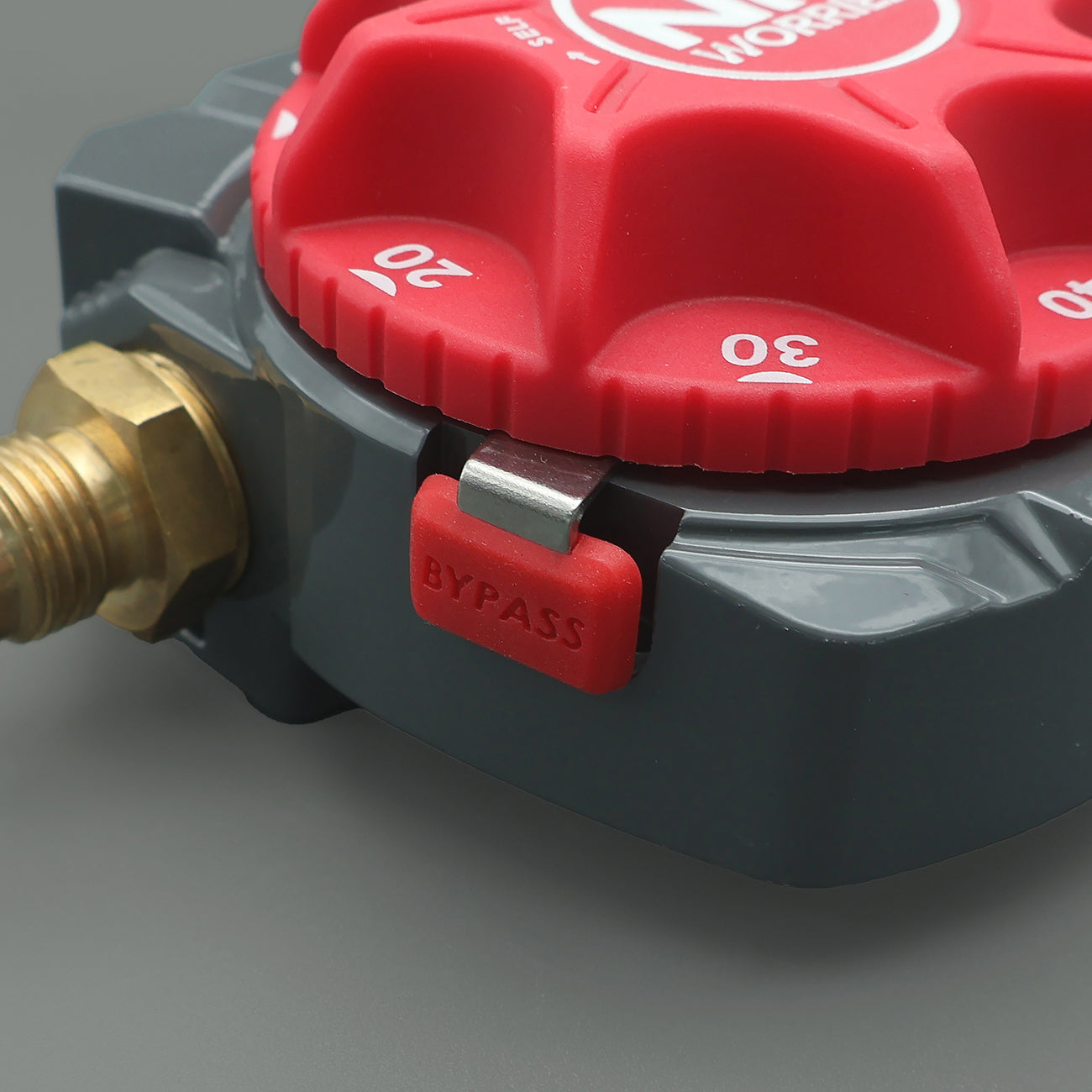

The side button is a mistake-proofing design, preventing users from mis-triggering the Bypass function. Before you use it, please follow the instructions to initiate it!

You can apply the gas shut off timer to …

Grill
Fire pit
Patio heater
Pizza Oven

The product's outstanding features

Gas timer features

With No Worriez, You Are All Set

  • Installable on any gas appliances
  • All-weather durability design
  • Easy Installation
  • No need for batteries

Mechanical Structure - Precise, Reliable, and Safe

No Worriez gas timers are made with a precision mechanical core, perform a precise and reliable shut-off procedure, have longer durability, and most importantly, ensure safety.

No Worriez gas timer mechanical structure ensures safety

Explore Bypass Function

The operating demonstration of No Worriez Bypass Gas Timer. When you need a grilling time longer than one hour, just push the side button and hold, then dial the timer to the bypass position.

  • Direction of the Gas Flow

    IN - You should connect the propane/gas supply to the IN side of the gas timer to allow gas to pass through the timer’s valve.

    OUT - Connect the OUT side of the timer to the gas grill. We also make a sticker indicate this side is "To The Grill"

    IMPORTANT: The gas valve of the timer is directional, if the gas pressure comes from the wrong side, it can damage the gas valve and cause the timer’s function to fail.

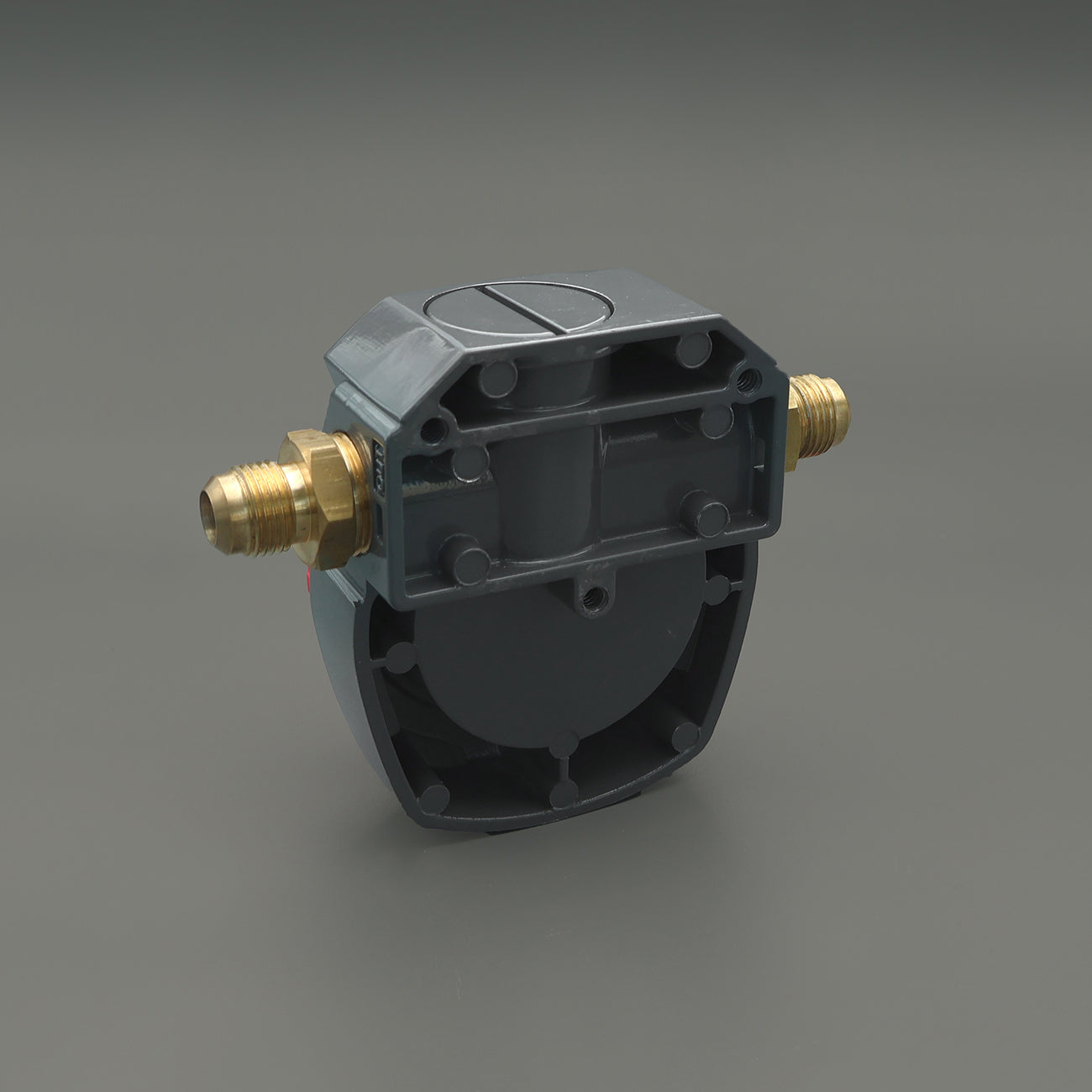

  • Instructions of how to mount the gas timer, using zip ties or screws

    No Worriez gas timer provides two methods to mount your gas timer

    1. Secure with cable tie
    2. Secure with screws; the spec of the thread hole on the back is #10-24 (3/16-24)

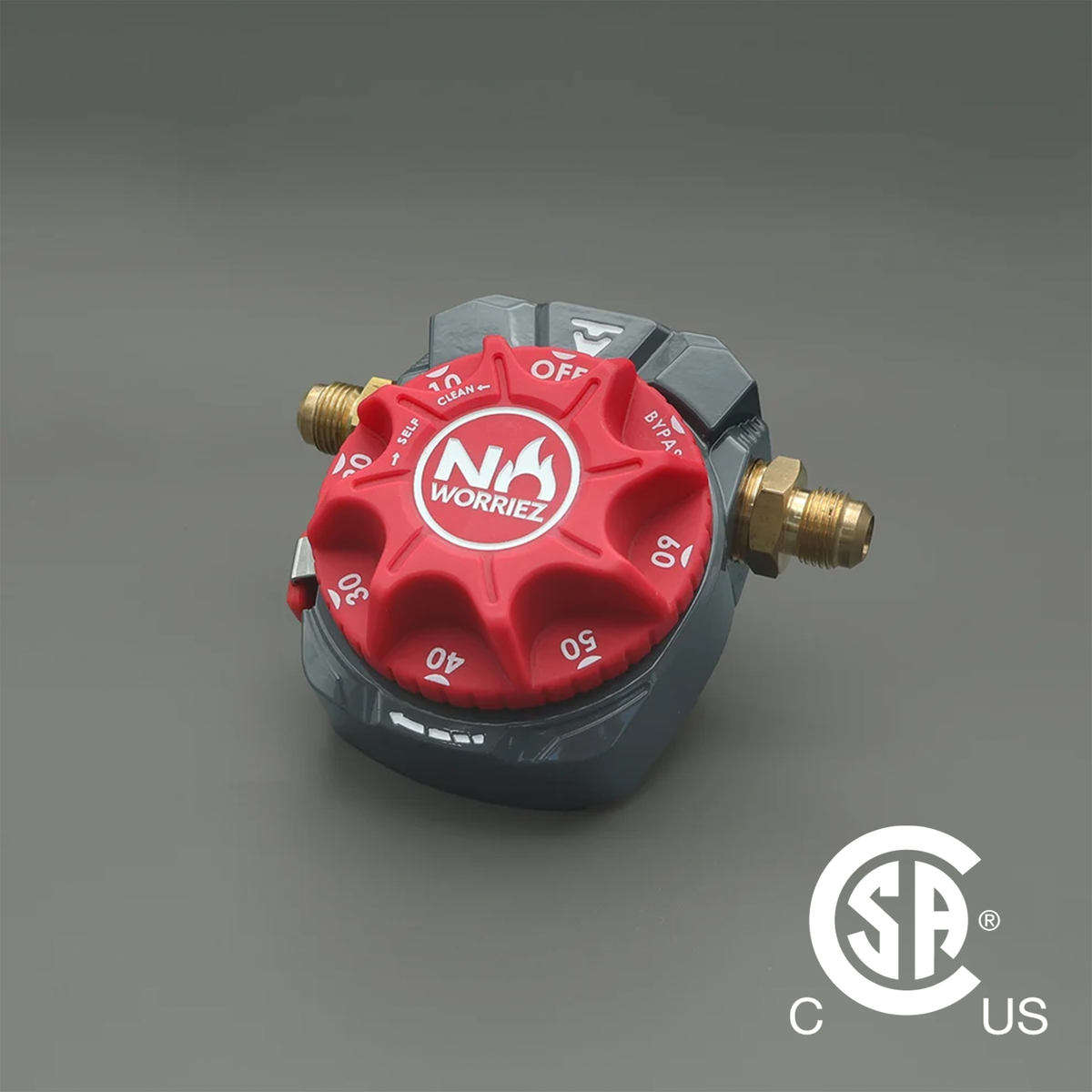

  • No Worriez gas timer is CSA certified and compliant with IP43 standards

    Industry Standard, Superior Quality

    The CSA Mark demonstrates that a product has been rigorously tested to applicable standards.

    IP 43 : Protected from tools and small wires greater than 1 millimeter. Protected from water spray less than 60 degrees from vertical.

  • Mounting Template Download

    Click HERE to download it.

  • WARNING

    • For outdoor and residential devices only.
    • IMPORTANT: To initially set up the timer, ensure the grill, gas tank and timer are all in turn off position and turn the dial clockwise past the 60-minute mark first and then turn it counter-clockwise to the “OFF” position. This is a one-time requirement for activating the mechanical timer.
    • Warning: Cancer and reproductive harm- See www.P65Warings.ca.gov for more information.
    • CAUTION: Installing gas appliances can be dangerous. Although NO WORRIEZ Timer provides information supporting DIY efforts, all gas connections should be made by a professional gas installer. We advise working with a certified NFI Gas Specialist. Start your search here: https://www.nficertified.org/public/
    • Important Note:
      If you want to set the timer less than 20 minute mark, ensure to turn the dial over the 60 minute mark, and then turn the dial back to the time you want to set. For example, if you’re setting for 10 or 15 minutes.
      If under long term not using, please turn the dial clockwise past the 60 minute mark first and then tur n it counter clockwise to the “OFF” position. This is a one time requirement for activating the mechanical timer.
      We recommend do it once a while to keep dial spring in perfect working condition.

No Worriez Gas Timer, Brings You Peace of Mind

Set the timer, and it will remember to shut off the gas even when you forget! You can use it for a relaxing grilling, or an easy clean up. No Worriez gas timer, your best gas grill shut off timer valve.
