ORIGIN Series: Auto Shut Off Gas Timer
-
Assy. Kit for Easy Installation

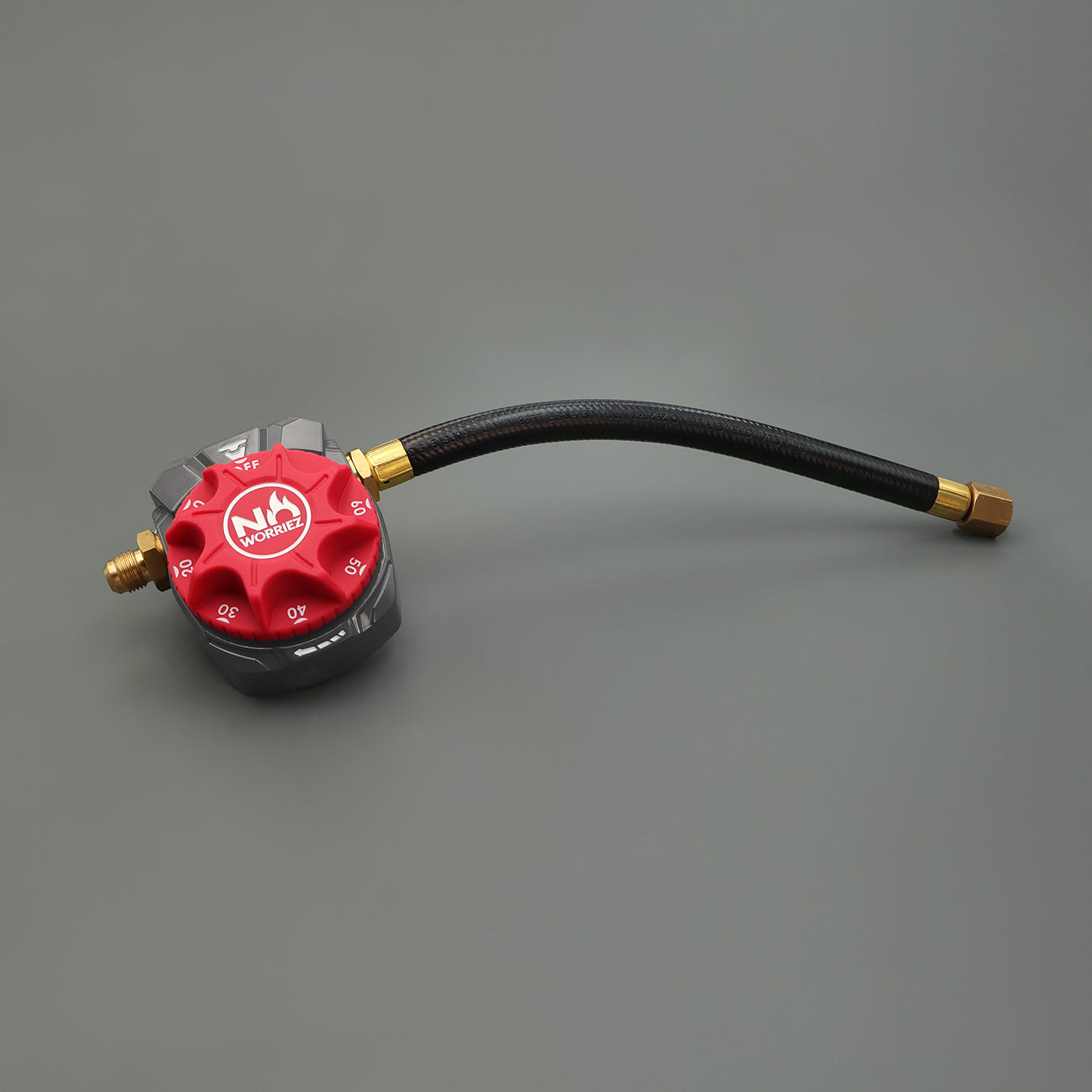

For model BGP-GTS-01, the gas timer is provided with a pre-assembled propane hose and a 3/8-inch NPT male connector, allowing users to build the connections between the propane tank and the gas grill with ease. You don’t have to figure out all the complicated specs of accessories;
No Worriez takes care of it!
-

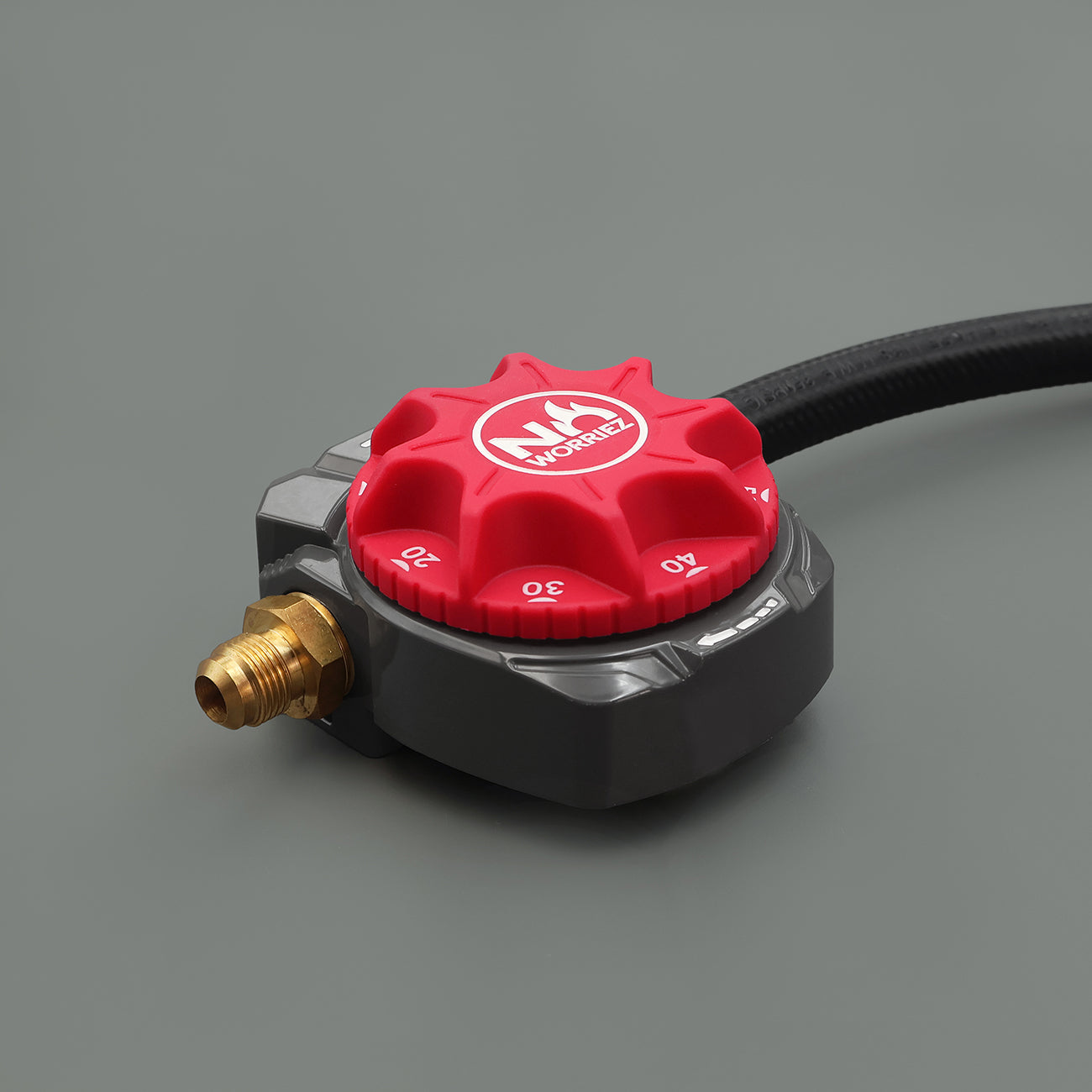

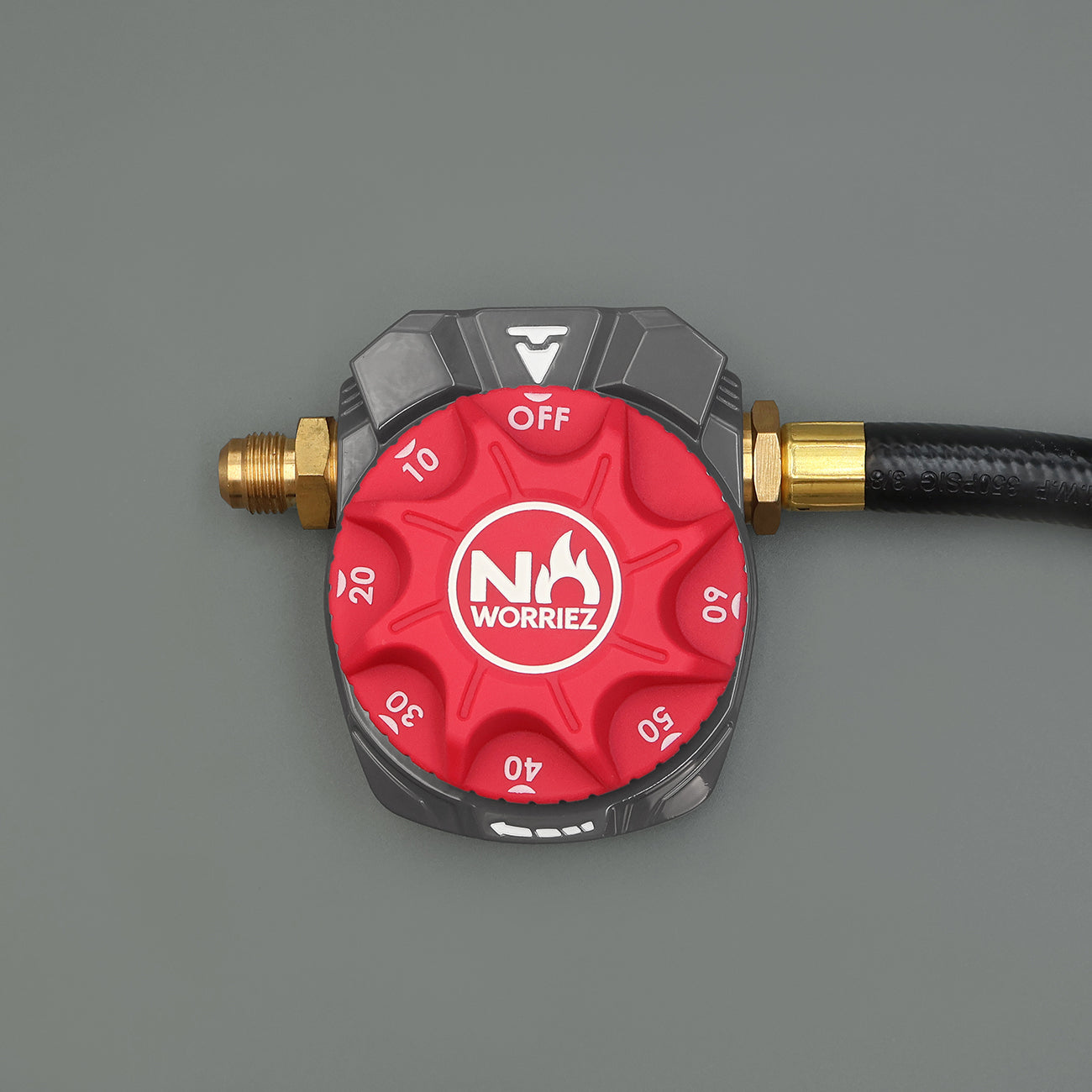

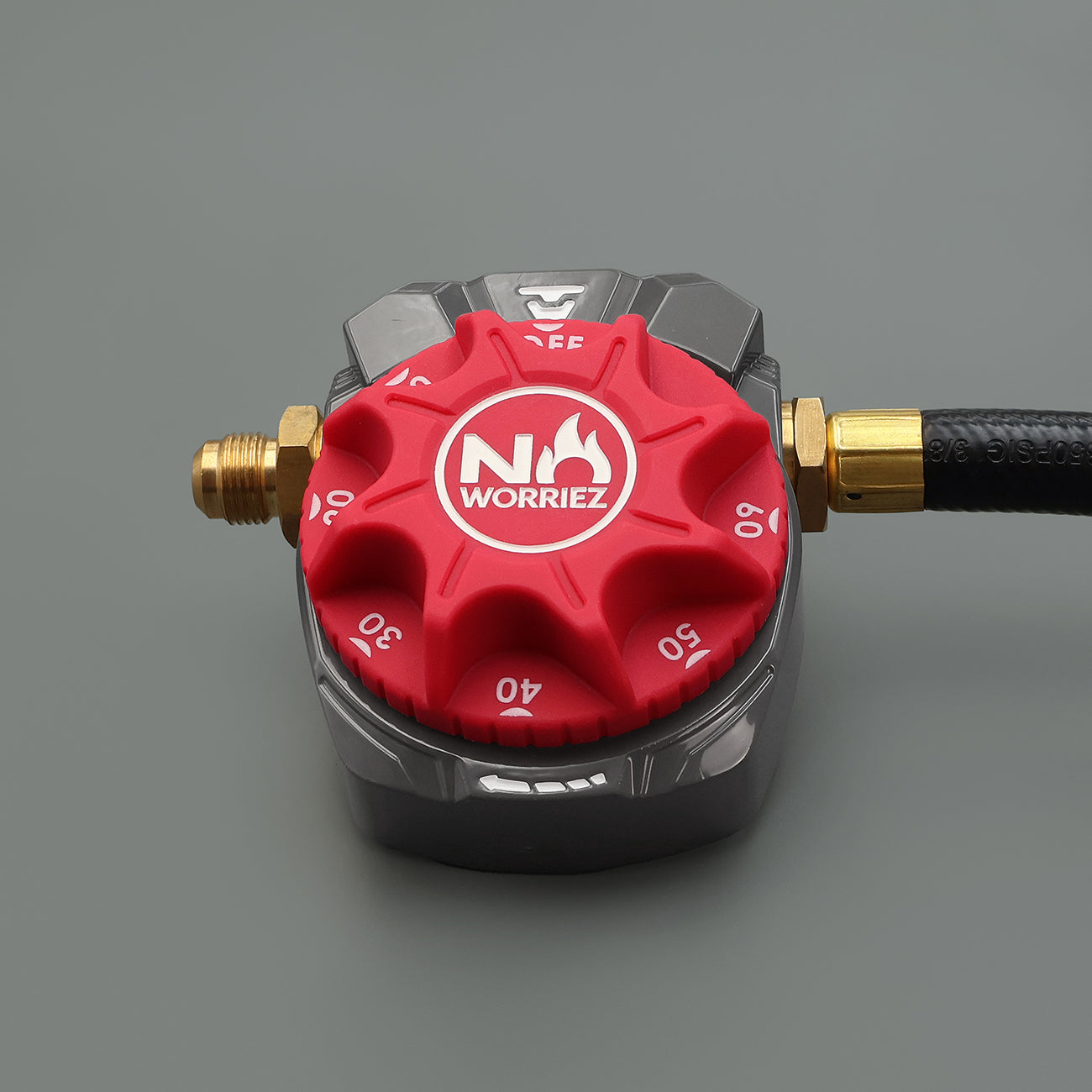

Auto-Off Timer Valve: Dial the timer up to 60 minutes
The gas timer offers a range of time intervals from 0 to 60 minutes. Its auto-off feature ensures that the gas supply is automatically shut off at the set time, reducing the gas wastage and enhancing home safety.
You can apply the gas shut off timer to …
The product's outstanding features
-
With No Worriez, You Are All Set
- Installable on any gas appliances
- All-weather durability design
- Easy Installation
- No need for batteries

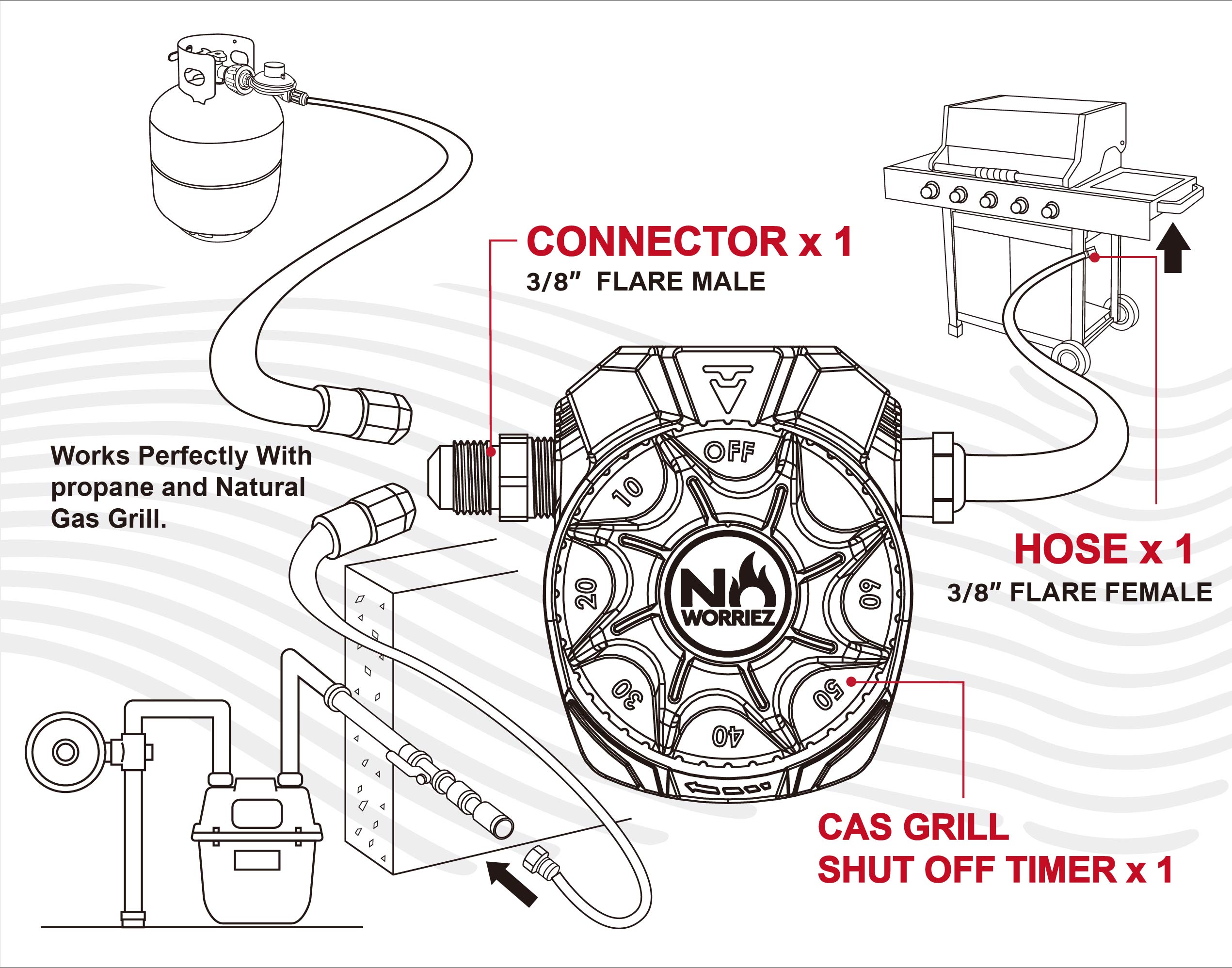

Tips of Installation
-
Direction of the Gas Flow
IN - You should connect the propane/gas supply to the IN side of the gas timer to allow gas to pass through the timer’s valve.
OUT - Connect the OUT side of the timer to the gas grill. We also make a sticker indicate this side is "To The Grill"
IMPORTANT: The gas valve of the timer is directional, if the gas pressure comes from the wrong side, it can damage the gas valve and cause the timer’s function to fail. -

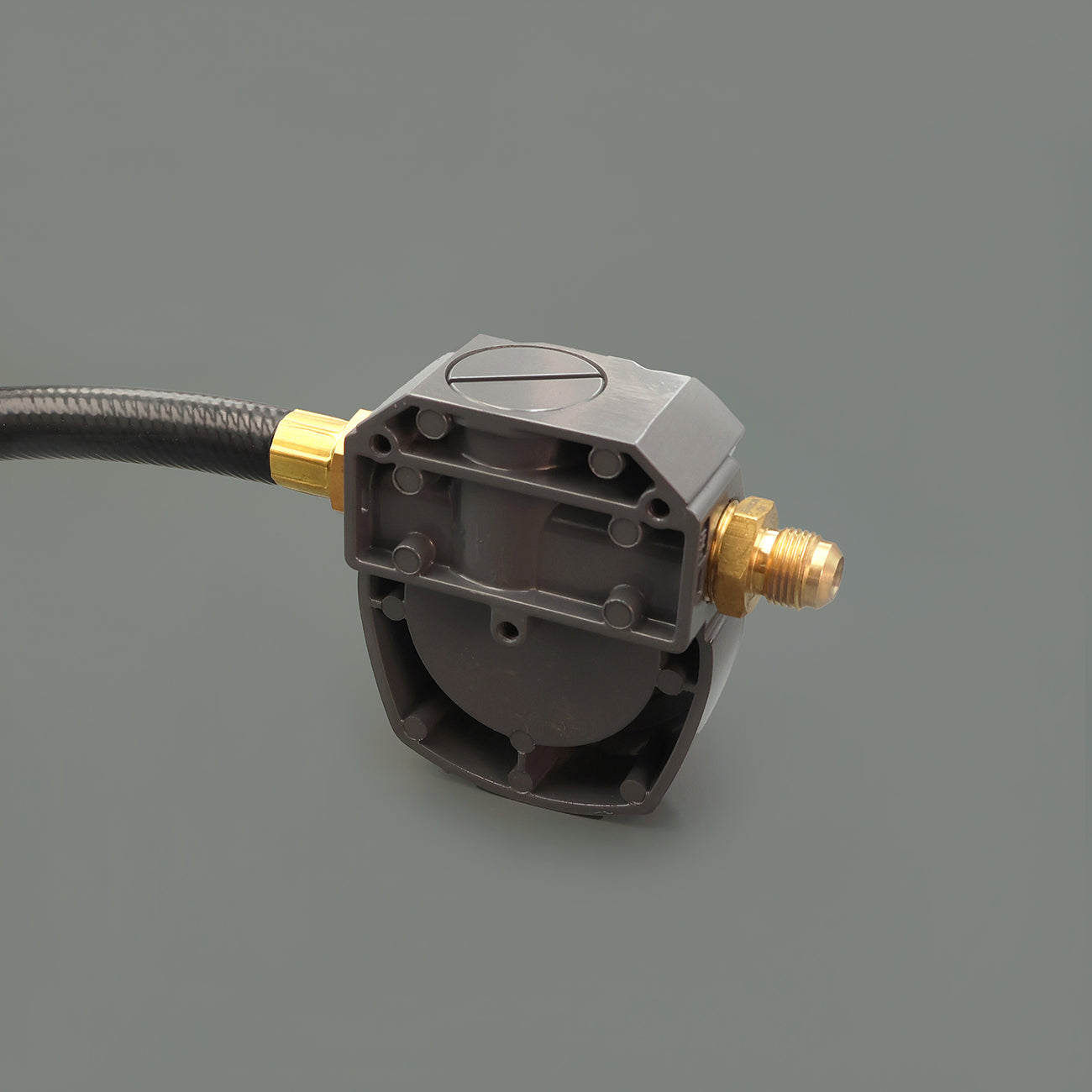

Flexibility in Mounting Your Gas Timer
No Worriez gas timer provides two methods to mount your gas timer：
- Secure with cable tie
- Secure with screws; the spec of the thread hole on the back is #10-24 (3/16-24)
-
Industry Standard, Superior Quality
No Worriez gas timers are CSA certified and compliant with IP43 standards.
*The CSA mark demonstrates that a product has been rigorously tested to applicable standards.
*IP43: Protected from tools and small wires greater than 1 millimeter. Protected from water spray less than 60 degrees from vertical.
No Worriez Gas Timer, Brings You Peace of Mind
Product Information
|
Product Information
|
|
| Brand | NO WORRIEZ |
| Product Name | Gas Grill Shut off Timer |
|
Item Model Number |
BGP-GTS-01 |
| Features | 100% mechanical operated device, no battery needed. |
|
Item Dimensions LxWxH |
15.7x3.9x2.4 inches |
|
Product Dimensions LxWxH |
8.4x6.6x2.4 inches |
| Product Weight | 1.5 LBS |
| Max Output | 80,000 B.T.U., Propane Gas @ 1.53 SP. @ 11” w.c |
| Water Resistance | IP43 |
| Certification | CSA |
| Manufacturer | NO WORRIEZ International Corp. |
| Country of Origin | Taiwan |
| Is Discontinued By Manufacturer | No |
| Date First Available | Oct. 01, 2021 |
Manual
No Worriez gas timer user manual (BGP-GTS-01)
Mounting Template Download
Warning
-For outdoor and residential devices only.
-IMPORTANT: To initially set up the timer, ensure the grill, gas tank and timer are all in turn off position and turn the dial clockwise past the 60-minute mark first and then turn it counter-clockwise to the “OFF” position. This is a one-time requirement for activating the mechanical timer.
- Warning: Cancer and reproductive harm- See www.P65Warings.ca.gov for more information.
- CAUTION: Installing gas appliances can be dangerous. Although NO WORRIEZ Timer provides information supporting DIY efforts, all gas connections should be made by a professional gas installer. We advise working with a certified NFI Gas Specialist. Start your search here: https://www.nficertified.org/public/
-Important Note:
If you want to set the timer less than 20 minute mark, ensure to turn the dial over the 60 minute mark, and then turn the dial back to the time you want to set. For example, if you’re setting for 10 or 15 minutes.
If under long term not using, please turn the dial clockwise past the 60 minute mark first and then tur n it counter clockwise to the “OFF” position. This is a one time requirement for activating the mechanical timer.
We recommend do it once a while to keep dial spring in perfect working condition.
