COMMANDO: 5 Psi High-Pressure Gas Timer
-
Single-Unit Gas Timer: The Fundamental Series
This model contains only a main gas timer device, please purchase the appropriate accessories, including connectors and propane hoses , for installation. Creating your own unique setups!
-
5 PSI High-Pressure Gas Timer
This 5 Psi gas timer is tailored for large stoves and is ideal for commercial use with instant ignition needs.
-

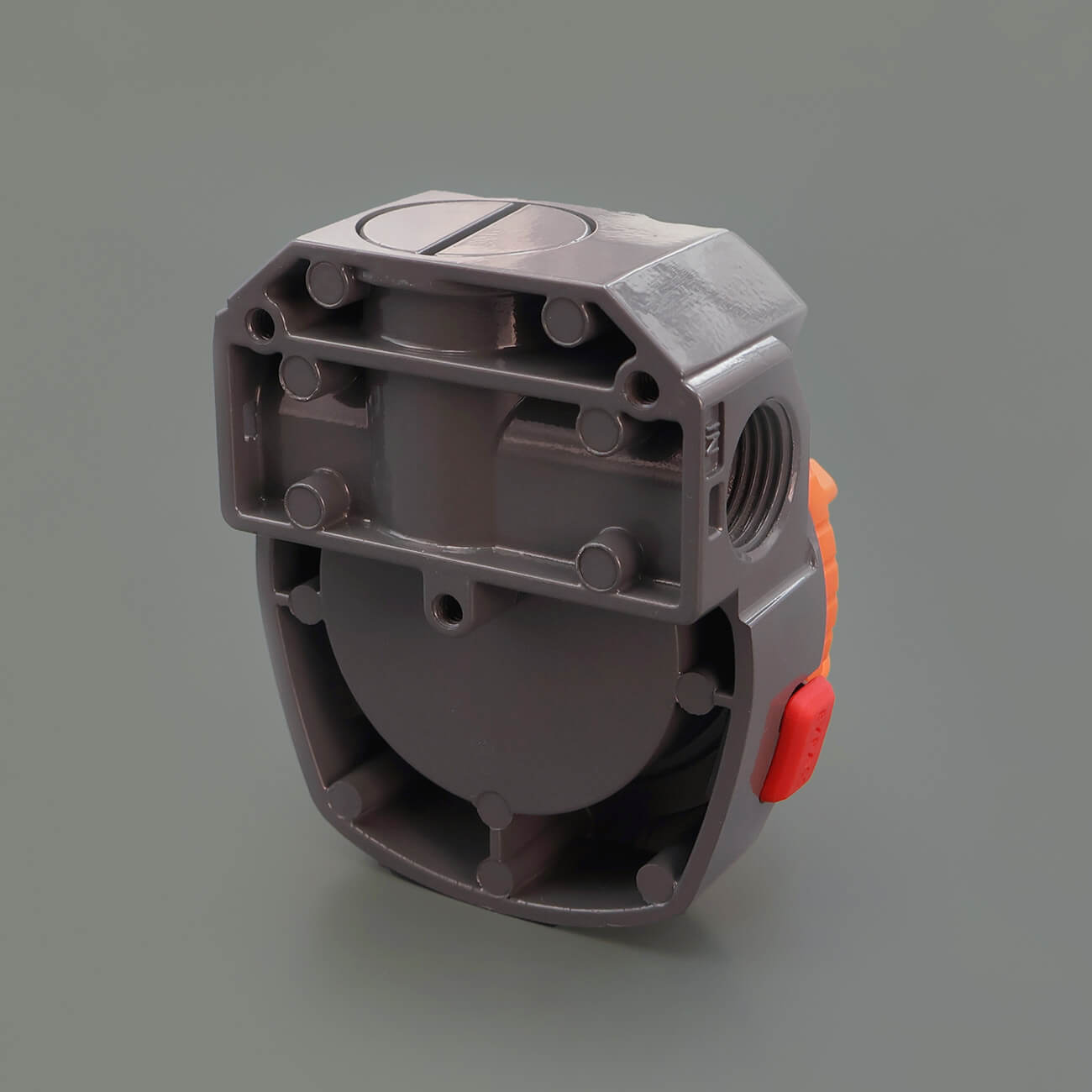

Bypass for Flexible Usage
This smart gas timer is crafted with an additional function called Bypass, it’s a continuous gas supply mode that supports long-time usage. You can switch between the regular auto-off timer mode and the Bypass mode, based on the scenario in which you have a demand.
You can apply the gas shut off timer to ...
The product's outstanding features
-
With No Worriez, You Are All Set
- Installable on any gas appliances
- All-weather durability design
- Easy Installation
- No need for batteries
Tips of Installation
-
Direction of the Gas Flow
IN - You should connect the propane/gas supply to the IN side of the gas timer to allow gas to pass through the timer’s valve.
OUT - Connect the OUT side of the timer to the gas grill. We also make a sticker indicate this side is "To The Grill"
IMPORTANT: The gas valve of the timer is directional, if the gas pressure comes from the wrong side, it can damage the gas valve and cause the timer’s function to fail. -
Flexibility in Mounting Your Gas Timer
No Worriez gas timer provides two methods to mount your gas timer：
- Secure with cable tie
- Secure with screws; the spec of the thread hole on the back is #10-24 (3/16-24)
-
Industry Standard, Superior Quality
No Worriez gas timers are CSA certified and compliant with IP43 standards.
*The CSA mark demonstrates that a product has been rigorously tested to applicable standards.
*IP43: Protected from tools and small wires greater than 1 millimeter. Protected from water spray less than 60 degrees from vertical.
Product Information
|
Product Information
|
|
|
Brand
|
NO WORRIEZ
|
|
Product Name
|
Gas Grill Shut off Timer
|
|
Item Model
Number
|
BGSH-GT-01S
|
|
Features
|
100% mechanical operated device, no battery needed.
|
|
Item Dimensions
LxWxH
|
3.9x3.3x2.4 inches
|
|
Product Dimensions
LxWxH
|
4.2x3.4x2.5 inches
|
|
Product Weight
|
0.9 LB
|
|
Max Output
|
<600,000 BTU/hr, Propane Gas @ 1.55 SP. @ 34.5” w.c.
|
|
Water Resistance
|
IP43
|
|
Certification
|
CSA
|
|
Manufacturer
|
NO WORRIEZ International Corp.
|
|
Country of Origin
|
Taiwan
|
|
Is Discontinued By Manufacturer
|
No
|
|
Date First Available
|
Dec. 08, 2023
|
Manual
No Worriez gas timer user manual (BGSH-GT-01S Commando 60)
Mounting Template Download
Warning
-For outdoor and residential devices only.
-IMPORTANT: To initially set up the timer, ensure the grill, gas tank and timer are all in turn off position and turn the dial clockwise past the 60-minute mark first and then turn it counter-clockwise to the “OFF” position. This is a one-time requirement for activating the mechanical timer.
- Warning: Cancer and reproductive harm- See www.P65Warings.ca.gov for more information.
- CAUTION: Installing gas appliances can be dangerous. Although NO WORRIEZ Timer provides information supporting DIY efforts, all gas connections should be made by a professional gas installer. We advise working with a certified NFI Gas Specialist. Start your search here: https://www.nficertified.org/public/
-Important Note:
If you want to set the timer less than 20 minute mark, ensure to turn the dial over the 60 minute mark, and then turn the dial back to the time you want to set. For example, if you’re setting for 10 or 15 minutes.
If under long term not using, please turn the dial clockwise past the 60 minute mark first and then tur n it counter clockwise to the “OFF” position. This is a one time requirement for activating the mechanical timer.
We recommend do it once a while to keep dial spring in perfect working condition.
